eWatch 100 Online energy monitoring system

Product at a glance
Web-based Energy Management
eWatch 100 is a web based state-of-the-art real-time data acquisition, monitoring & software for effective management of electrical systems by any electrical (electricity) and / or nonelectrical (heat, water & gas) business user in an industry. The software communicates with MODBUS supported energy meters to acquire online data, processes the data and displays the data in tabular, gauge, graphical or mimic views as per user choice. Its enriched alarm engine, dash board & reporting tool facilities help the user to take decision proactively, thus eliminating any harmful events in the electrical or non-electrical system. The system also supports billing analysis for main & auxiliary supply. Further, the system helps the user to analyze carbon emission based on energy consumption.

Contact us Download

Application
Industrial and commercial sub-metering applications
Building management and monitoring systems
Entities engaged in energy certificates, carbon credit and ISO / Green building
Generating power plants
Open access industries

Benefits
Online energy monitoring & cost analysis
Enables entities to drive energy efficiency, reduce cost and carbon footprint
User configurable dashboards using drag and drop wizard for multiple users
OPC server to provide online data to external system / software
Single system to support up to 1000 meters of multiple makes including dual register meters
Web based software (works on Intranet)
Easy implementation through client-server architecture
Helps to monitor & compare trends of different locations
Helps to set targets against which consumer can monitor utility use
Configurable alarms for instantaneous parameters with high and low threshold limit
Single point acquisition for multi fuel data (Electricity, heat, water and gas)
Easy installation

Features
Online data acquisition over RS 485 MODBUS & TCP/IP
Multiple on line viewing options such as tabular, configurable gauge and graphical, dashboard & mimic
Flexibility to define dynamic tariff structure to analyze energy cost

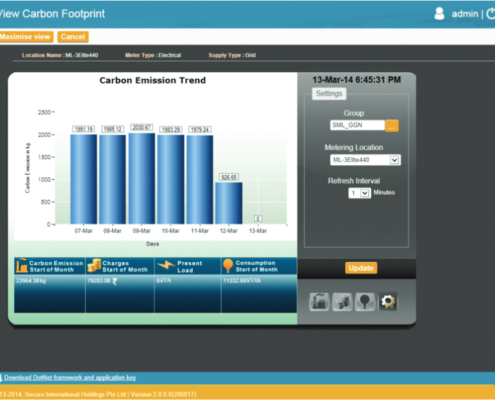

Carbon emission analysis based on type of energy consumption
Flexible reporting options for energy consumption, demand report, virtual metering report, min-max parameter report and meter replacement report
Automatic daily report generation and E-mail to assigned user for electrical meters
Organized storage of the collected data for the future use with auto & manual clean-up facility
OPC (Server version Std. DA V2/V3) data communication support
Supports multi-fuel monitoring for heat, water & gas meters through pulse output
Facility to monitor & analyze multiple locations under single view using Virtual Meter concept
Active Mimics configurability with drill down mimic feature

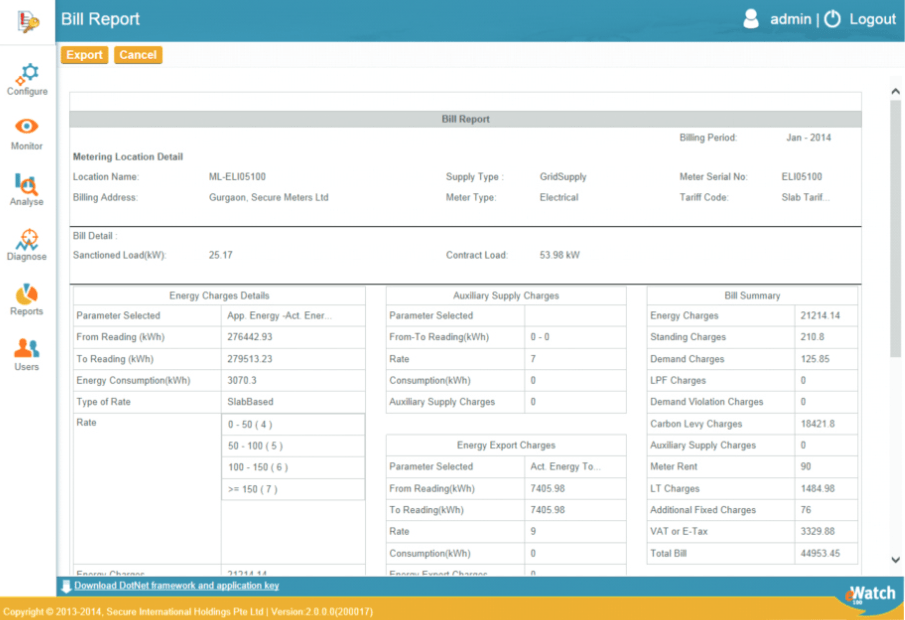

Separate bill analysis for mains and auxiliary
Shift wise production data entry to generate specific energy consumption report
Automatic Bulk Metering information import through excel import
