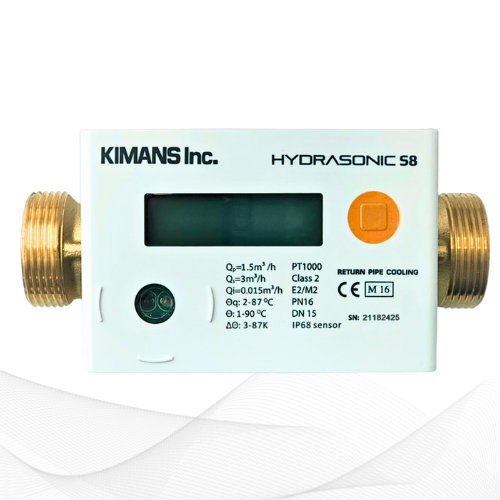

Hydrasonic S8 ultrasonic BTU meter is designed for measuring the
energy consumption in heating/cooling application for billing purpose.
Its static ultrasonic technology is based on the measurement of the
transit time.
It offers benefits like easy battery & temperature sensor replacement,
IP68 protection, no straight run requirements, M-Bus and Wireless M
Bus communication options
The Hydrasonic S8 Ultrasonic BTU Meter is a state-of-the-art solution engineered to precisely measure energy consumption in both heating and cooling applications, primarily for accurate and reliable billing purposes. Built on static ultrasonic technology, it operates using the transit time measurement principle, ensuring high precision and long-term stability without any moving parts, which significantly reduces wear and maintenance.
Designed for modern HVAC and district energy systems, the Hydrasonic S8 is ideal for installations in residential buildings, commercial complexes, and institutional facilities where thermal energy usage must be measured and billed accurately. The meter’s compact design and robust features make it suitable for a wide range of installation environments, including those with limited access or harsh conditions.
One of the standout advantages of the Hydrasonic S8 is its ease of maintenance. It allows for simple battery and temperature sensor replacement, minimizing downtime and ensuring continued performance without complex servicing requirements.
Additionally, the device comes with IP68-rated protection, making it highly resistant to dust, moisture, and water ingress. This level of durability allows the meter to be installed in outdoor or submerged conditions, further enhancing its versatility in demanding applications.
Unlike many conventional flow meters, the Hydrasonic S8 does not require straight pipe runs for accurate measurement. This provides greater flexibility during installation, especially in space-constrained environments where traditional meters might be limited by placement constraints.
To support remote data collection and integration with building automation or utility monitoring systems, the Hydrasonic S8 includes advanced communication options, such as M-Bus and Wireless M-Bus (wM-Bus). These options enable seamless connectivity and real-time access to metering data, making it easier for facility managers and utility providers to monitor energy consumption, generate reports, and manage billing systems efficiently.
Ultrasonic Transit Time Technology for high-accuracy thermal energy measurement
Designed for both heating and cooling applications in commercial and residential settings
Easy battery and temperature sensor replacement reduces maintenance effort
IP68-rated protection for reliable operation in harsh or wet environments
No straight run requirements, allowing flexible installation in tight spaces
Supports M-Bus and Wireless M-Bus for remote data communication and system integratio
