Portable Anaylzer KMB

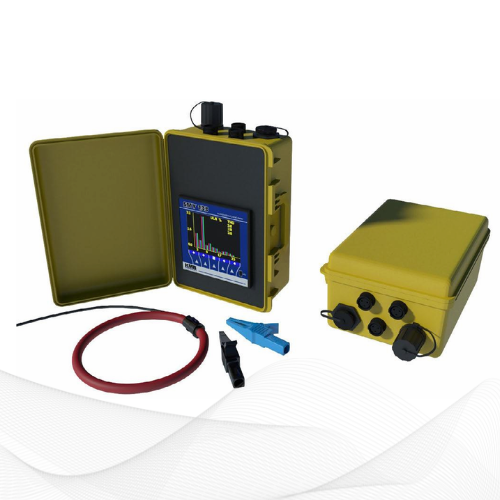

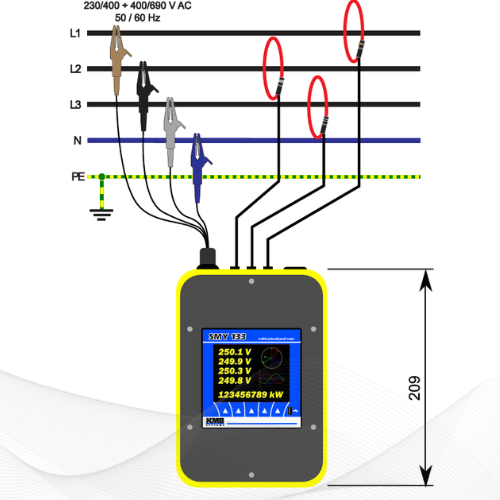

Analyser of electric network parameters SMY-CA is a measuring and data logging intrument for single and three phase low voltage (up to 230/400V) distribution networks in subsations,switchegear boxes, cubicles or directly at the consumers premises such as smart buildings, hospitals, industrial infrastructures etc.
Core of the instrument is a modified SMY 133 analyser. Its features and functions closely corresponds to IP65 mini case version-CA.
With PQS firmware module instrument becomes a fully featured power quality analysers with support for flicker indices (Pst,Plt), record of voltage events and weekly power quality evalutations according to EN 50160.

Contact us Download

PQS module
Module for evaluation of power quality according to EN’50160 (class S). Enables measure-
ment and recording of flicker indices, interharmonics and voltage events. Power quality is
evaluated weekly and stored to special PQ Main archive for future processing.

GO module
Module for detection and precise recording of various waveform distortions. This module
records the so called oscillograms of voltages and currents in extended detail, capacity and
trigger options into the flash memory.

RCS module
‘The RCS module (ripple control signal or mains voltage) activates an ability to detect, evalu-
ate, decode and store RCS messages transmitted over the distribution network. It precisely
measures voltage on the selected frequency and stores the extracted information,
